V-STARS
is photogrammetry software that allows you to determine accurate
3D coordinates (XYZ) from digital images. Typically, pictures are
taken from two or more locations using a very precise digital camera
such as GSI's INCA3. The photographs
are then automatically processed using the powerful V-STARS
software to produce the 3D coordinates of the measured object. The
3D coordinates can be visualized and analyzed using V-STARS
software or a third party software. The points to be measured can
be either physically targetted (stick on targets, tooling targets)
or projected dots (via the PRO-SPOT
projector) or probed (hand held probes).
There are different V-STARS configurations available.
V-STARS/S or V-STARS/E
use a single camera, whilst
V-STARS/M uses two or more cameras.
|
 |
Representing decades of
development and experience, the V-STARS software is at
the core of every system. V-STARS is robust, highly automated
and comprehensive. Some of its features include:
- Fast, completely automatic
image processing
- Template projects for
automating repeat measurements
- Construction objects
to simplify repetitive data analysis

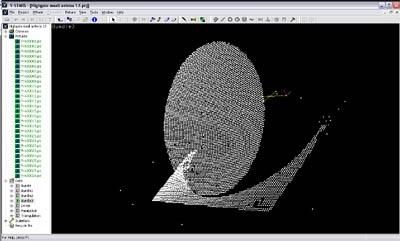

- Graphical viewing of
data and results
- Data alignment and transformation
- Report generating capabilities
- Export data to third
party softwar
|
 |
Optional packages are
available for further data analysis. These include:
SOLIDS - Computes
best-fit lines, planes, circles, spheres, cylinders and curves.
V-SURF - Imports IGES files for point to surface analysis.
PARABOLA - Computes best-fit paraboloid.
